Square or Chamfered Spindles

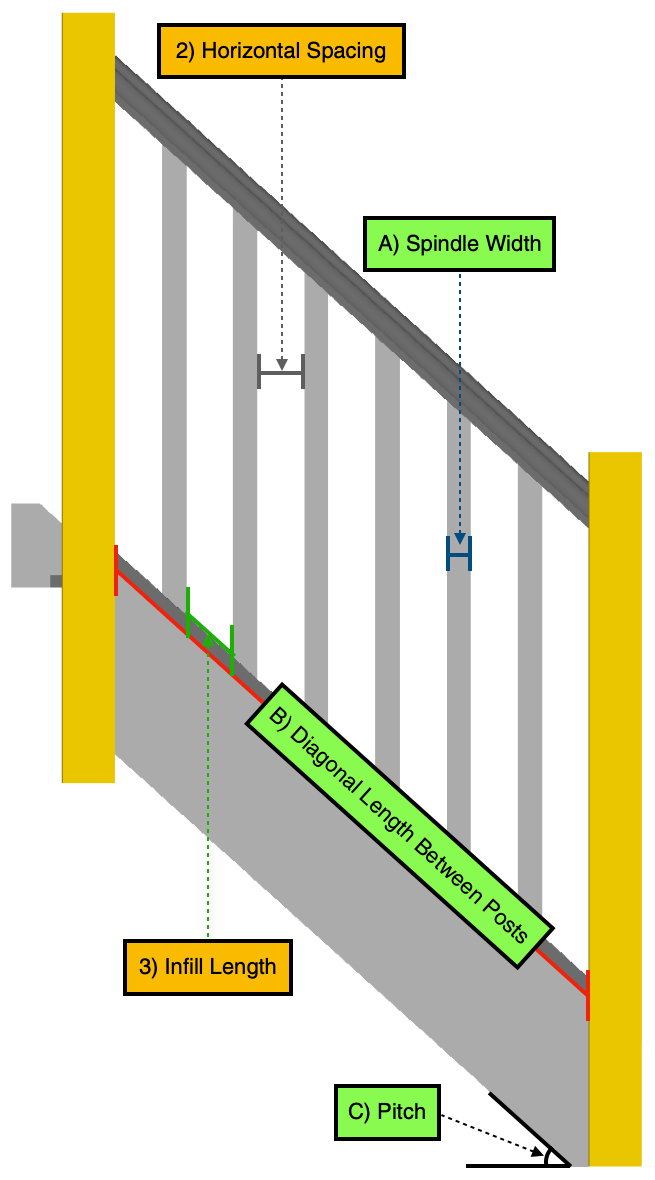

- Number of spindles required
- —
- Horizontal spacing
- —
- Infill length
- —
Spindle Spacing
Spindle/baluster spacing is something we get asked about a lot and causes a lot of confusion due to the complexity of the calculation. It’s imperative to get this correct as spindles spaced incorrectly can look aesthetically wrong or even worse not comply to current building regulations.
1
Spindle spacing inputs
2
Results
Turned Spindles
- Number of spindles required
- —
- Horizontal spacing
- —
- Infill length
- —
What do building regulations say?
Building regulations state:
“Ensure that a 100mm sphere cannot pass through any openings in the guarding.”

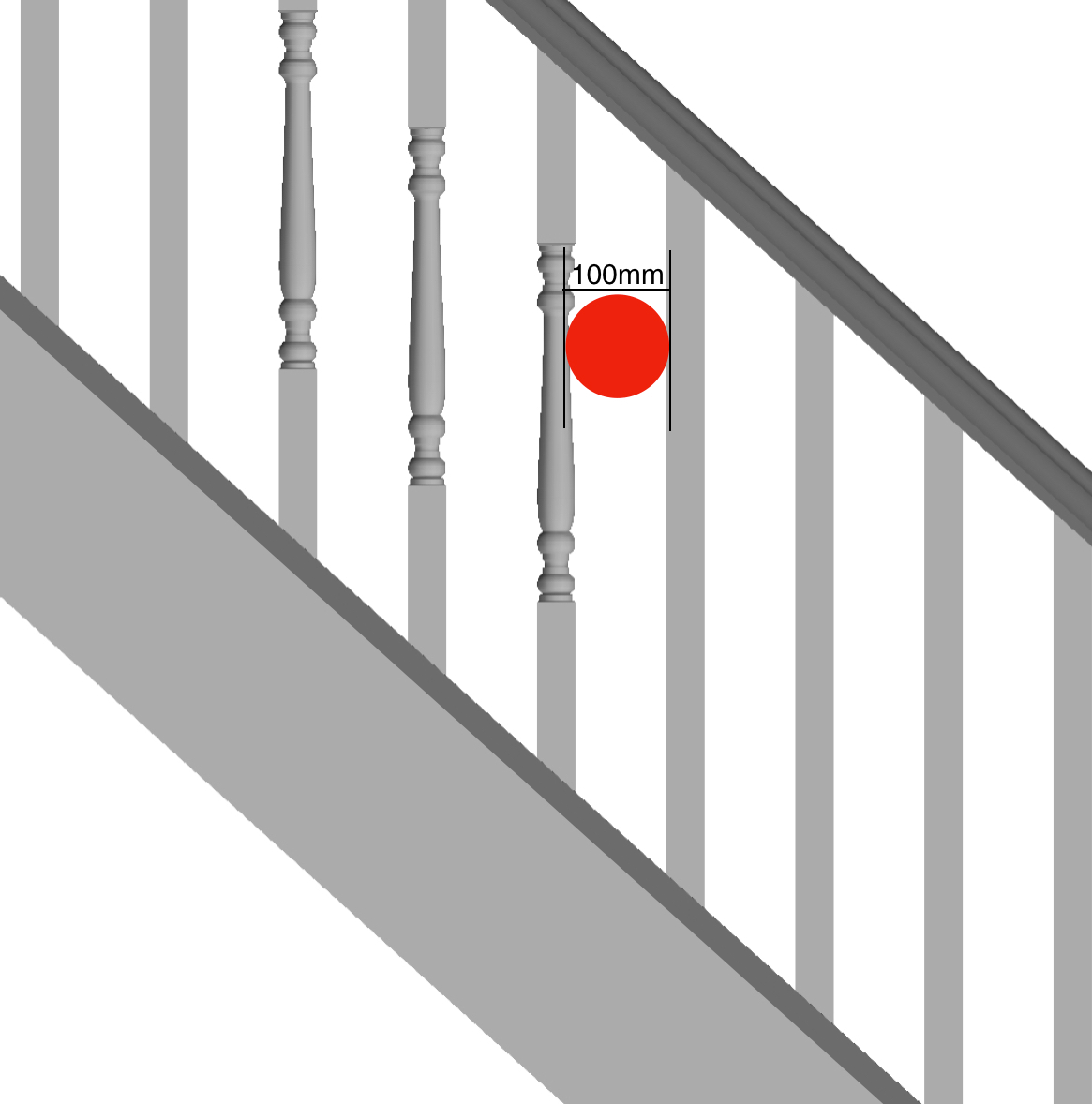

This means that if you have a ball with a 100mm diameter it must not be able to fit between the spindles when measured horizontally, as shown in the diagram.
Turned spindles are a smaller width on the turned section and as such, the spindles need to be slightly closer together to the 100mm requirement, meaning you typically need to use a few more on a staircase.
